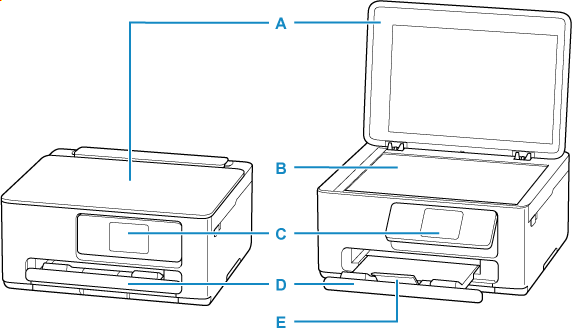

Front View

A: Document Cover

Open to load an original on the platen.

B: Platen

Load an original here.

C: Operation Panel

Use to change the settings of the printer or to operate it. The panel is pushed open by the paper output tray before printing starts.

• Operation Panel

D: Paper Output Tray

Printed paper is ejected. Pull out it before printing.

E: Output Tray Extension

Open to support ejected paper.

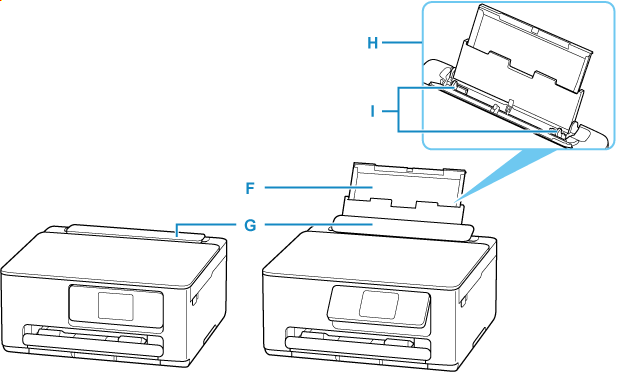

F: Paper Support

Extend to load paper in the rear tray.

G: Feed Slot Cover

Prevents anything from falling into the feed slot.

Open it to slide the paper guides, and close it before printing.

H: Rear Tray

Two or more sheets of the same size and type of paper can be loaded at the same time, and fed automatically one sheet at a time.

• Loading Photo Paper / Plain Paper in Rear Tray
• Loading Envelopes in Rear Tray

I: Paper Guides

Align with both sides of the paper stack.

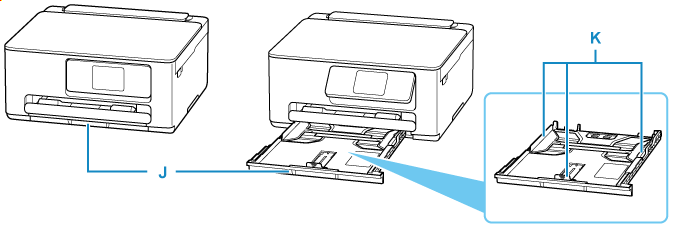

J: Cassette

Load A4, B5, or A5 sized plain paper into the cassette, and insert it into the printer.

• Loading Plain Paper in Cassette

K: Paper Guides

Align with right/left/front sides of the paper stack.
